Burglar Alarm System

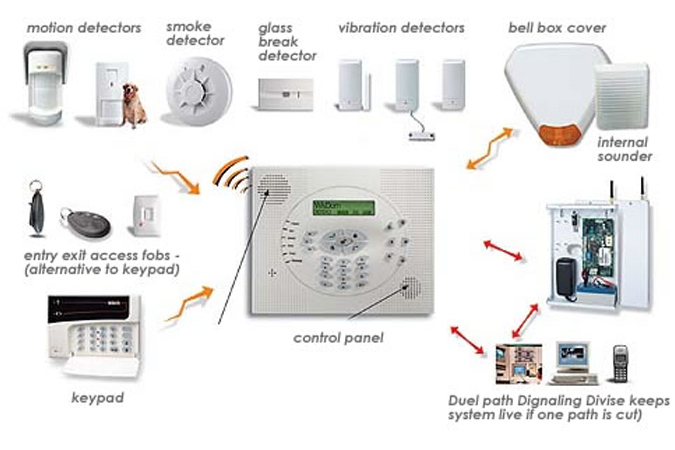

A burglar alarm control panel is a wall-mounted unit where the detection devices and wiring of the alarm are ultimately connected and managed. These include devices such as bells, sirens, door contacts, motion detectors, smoke detectors, etc. Typical panels are located in utility closets or access rooms.
The simplest type of burglar alarm control consists of a single relay. In this type, the sensor circuit holds the relay energized. Since the path for the loop goes through a set of contacts which are normally open (when the relay is restored they are open, when the relay is energized they are closed), when the loop opens, even momentarily, the relay will drop out and stay that way. The system is disarmed by a key-operated shunt which forces the relay to energize, and is armed by closing all traps and then by opening the shunt.
While burglar alarm controls are now very elaborate, the single-relay control incorporates all the functionality of any control. These controls and a closely related dual-relay design are still widely used in stand-alone applications, powered by lead-acid batteries.
Features :
- Central Control Unit
- Arming / disarming system
- Power Back-up
- Wired or wireless
- Zones
- Information Input / Outputs
- Zone bypassing and forced arming Accessories
- Magnetic switch
- Passive Infrared Sensors (PIR)
- Avoiding false alarms with PIR
- Glass break detector - Vibration type Vibration detector
